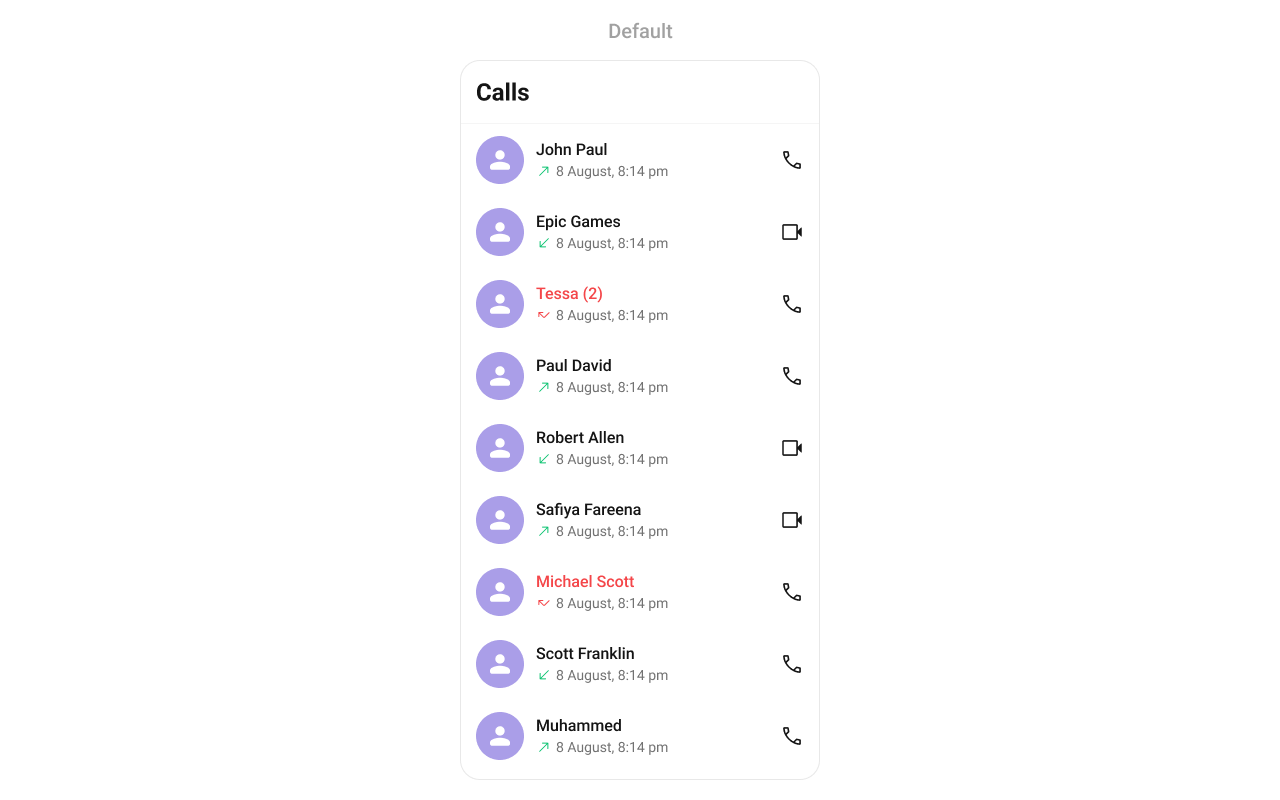

CometChatCallLogs displays the list of call logs for the currently logged-in user, showing caller names, avatars, call status, and timestamps.

When to use this

You need a screen that lists all incoming, outgoing, and missed calls for the logged-in user.
You want to show caller names, avatars, call type (audio/video), and call status for each entry.
You need tap and long-press actions on call log items (open details, delete, call back).
You want to filter call logs by type, status, direction, recording status, or specific user/group IDs.
You want to customize the call log list appearance with styles, custom views, or date formatters.

Prerequisites

CometChat SDK initialized with CometChatUIKit.init() and a user logged in.
The cometchat-chat-uikit-android dependency added to your project.
A valid layout_activity.xml or Activity/Fragment where you will place the component.

Quick start

Open your layout_activity.xml file.
Add the CometChatCallLogs XML element:

layout_activity.xml

<com.cometchat.chatuikit.calls.calllogs.CometChatCallLogs
    android:id="@+id/call_log"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

What this does: Adds the CometChatCallLogs component to your layout. It fills the available width and height and renders the call log list for the logged-in user.

Build and run your app.
Verify that the call log list appears with caller names, avatars, call status indicators, and timestamps.

If you need to add the component programmatically instead of XML, see the Activity integration or Fragment integration subsections in Implementation.

Core concepts

CometChatCallLogs: The main component class that renders the call log list. It can be added via XML layout, Activity, or Fragment.
Actions: Callbacks such as setOnItemClick, setOnItemLongClick, and setOnBackPressListener that let you respond to user interactions.
Filters: Use CallLogRequest.CallLogRequestBuilder to filter call logs by limit, call type, call status, recording status, call direction, UID, GUID, call category, or auth token.
Events: The CometChatCallLogs component does not have any exposed events.
Style: XML theme styles (parent CometChatCallLogsStyle) applied via setStyle() to customize colors, fonts, and sub-component styles.
Advanced views: Methods like setLeadingView, setTitleView, setTrailingView, setItemView, and setSubtitleView that let you replace default UI elements with custom layouts.

Implementation

Activity integration

What you’re changing: How you add CometChatCallLogs to an Activity programmatically.

Where: Your Activity class (e.g., YourActivity.java or YourActivity.kt).
Applies to: CometChatCallLogs.
Default behavior: The component is not added until you set it as the content view.
Override: Create a CometChatCallLogs instance and call setContentView in onCreate.
Code:

Java
Kotlin

YourActivity.java

CometChatCallLogs cometchatCallLogs;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatCallLogs = new CometChatCallLogs(this);

    setContentView(cometchatCallLogs);
}

YourActivity.kt

private lateinit var cometchatCallLogs: CometChatCallLogs

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)

    cometchatCallLogs = CometChatCallLogs(this);

    setContentView(cometchatCallLogs)
}

What this does: Creates a new CometChatCallLogs instance and sets it as the entire content view of the Activity. The call log list renders immediately after the Activity is created.

Verify: The call log list fills the screen when the Activity launches.

Fragment integration

What you’re changing: How you add CometChatCallLogs to a Fragment.

Where: Your Fragment class (e.g., YourFragment.java or YourFragment.kt).
Applies to: CometChatCallLogs.
Default behavior: The component is not added until you return it from onCreateView.
Override: Create a CometChatCallLogs instance and return it from onCreateView.
Code:

Java
Kotlin

YourFragment.java

CometChatCallLogs cometchatCallLogs;

@Override
public View onCreateView(@NonNull LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {

    cometchatCallLogs = new CometChatCallLogs(requireContext());

    return cometchatCallLogs;
}

YourFragment.kt

private lateinit var cometchatCallLogs: CometChatCallLogs

override fun onCreateView(
    inflater: LayoutInflater?, container: ViewGroup?,
    savedInstanceState: Bundle?
): View {

    cometchatCallLogs = new CometChatCallLogs(requireContext());

    return cometchatCallLogs
}

What this does: Creates a new CometChatCallLogs instance and returns it as the Fragment’s root view. The call log list renders when the Fragment is displayed.

Verify: The call log list appears inside the Fragment’s container.

Actions

What you’re changing: How the component responds to user interactions such as taps, long-presses, back button, errors, load completion, and empty states.

Where: Activity or Fragment where you hold a reference to CometChatCallLogs (e.g., cometchatCallLogs).
Applies to: CometChatCallLogs.
Default behavior: Predefined actions execute automatically (e.g., tapping a call log item opens details, pressing back navigates to the previous screen).
Override: Call the corresponding setter method to replace the default behavior with your own logic.

`setOnItemClick`

Function invoked when a call log item is clicked, used to open a detailed chat screen.

Java
Kotlin

YourActivity.java

cometchatCallLogs.setOnItemClick((view1, position, callLog) -> {

    });

YourActivity.kt

cometchatCallLogs.onItemClick = OnItemClick { view, position, callLog ->

    }

What this does: Replaces the default item-click behavior. When a user taps a call log entry, your custom lambda executes instead of the built-in navigation.

`setOnItemLongClick`

Function executed when a call log item is long-pressed, allowing additional actions like delete or select.

Java
Kotlin

YourActivity.java

cometchatCallLogs.setOnItemLongClick((view1, position, callLog) -> {

    });

YourActivity.kt

cometchatCallLogs.onItemLongClick = OnItemLongClick({ view, position, callLog ->

    })

What this does: Replaces the default long-press behavior. When a user long-presses a call log entry, your custom lambda executes.

`setOnBackPressListener`

Triggered when the user presses the back button in the app bar. By default, it navigates to the previous activity.

Java
Kotlin

YourActivity.java

cometchatCallLogs.setOnBackPressListener(() -> {

    });

YourActivity.kt

cometchatCallLogs.onBackPressListener = OnBackPress {

    }

What this does: Overrides the default back-press navigation. When the user taps the back button, your custom logic runs instead.

`setOnError`

Listens for any errors that occur in the Call Logs component. This does not change the component’s behavior.

Java
Kotlin

YourActivity.java

cometchatCallLogs.setOnError(cometchatException -> {

    });

YourActivity.kt

cometchatCallLogs.setOnError {

    }

What this does: Registers an error listener. If the component encounters an error (e.g., network failure), your callback receives the exception.

`setOnLoad`

Invoked when the list is successfully fetched and loaded, helping track component readiness.

Java
Kotlin

YourActivity.java

cometchatCallLogs.setOnLoad(list -> {

});

YourActivity.kt

cometchatCallLogs.setOnLoad(object : OnLoad<CallLog?> {
    override fun onLoad(list: MutableList<CallLog?>?) {

    }
})

What this does: Registers a callback that fires after the call log list is fetched and rendered. The callback receives the list of loaded CallLog objects.

`setOnEmpty`

Called when the list is empty, enabling custom handling such as showing a placeholder message.

Java
Kotlin

YourActivity.java

cometchatCallLogs.setOnEmpty(() -> {

    });

YourActivity.kt

cometchatCallLogs.setOnEmpty{

    }

What this does: Registers a callback that fires when the call log list has no items. Use this to show a custom empty-state message or trigger other logic.

Verify: After setting an action callback, trigger the corresponding user interaction (tap, long-press, back) and confirm your custom logic executes instead of the default behavior.

Filters

What you’re changing: Which call logs appear in the list.

Where: Activity or Fragment where you hold a reference to CometChatCallLogs.
Applies to: CometChatCallLogs.
Default behavior: All call logs for the logged-in user are fetched and displayed.
Override: Create a CallLogRequest.CallLogRequestBuilder, configure it, and pass it to setCallLogRequestBuilder.

You can filter using the following parameters:

Property	Description	Code
Limit	Sets the limit for the call logs request	`.setLimit(int limit)`
Call Type	Sets the call type for the call logs request	`.setCallType(String callType)`
Call Status	Sets the call status for the call logs request	`.setCallStatus(String callStatus)`
Has Recording	Sets the recording status for the call logs request	`.setHasRecording(boolean hasRecording)`
Call Direction	Sets the call direction for the call logs request	`.setCallDirection(String callDirection)`
UID	Sets the user ID for the call logs request	`.setUid(String uid)`
GUID	Sets the group ID for the call logs request	`.setGuid(String guid)`
Call Category	Sets the call category for the call logs request	`.setCallCategory(String callCategory)`
Auth Token	Sets the auth token for the call logs request	`.setAuthToken(String authToken)`

Code:

Java
Kotlin

CallLogRequest.CallLogRequestBuilder callLogRequestBuilder = new CallLogRequest.CallLogRequestBuilder()
        .setLimit(20)
        .setHasRecording(true);

cometchatCallLogs.setCallLogRequestBuilder(callLogRequestBuilder);

val callLogRequestBuilder = CallLogRequestBuilder()
    .setLimit(20)
    .setHasRecording(true)

cometchatCallLogs.setCallLogRequestBuilder(callLogRequestBuilder)

What this does: Creates a CallLogRequestBuilder that filters call logs to show only entries with recordings, with a limit of 20 per fetch. The builder is then applied to the CometChatCallLogs component.

Verify: The call log list shows only call logs that have recordings and fetches at most 20 items per request.

Events

The CometChatCallLogs component does not have any exposed events.

Style

What you’re changing: The visual appearance of the Call Logs component using XML theme styles.

Where: themes.xml for style definitions, and your Activity/Fragment for applying the style.
Applies to: CometChatCallLogs.
Default behavior: The component uses the default CometChatCallLogsStyle.
Override: Define a custom style with parent CometChatCallLogsStyle in themes.xml, then call setStyle() on the component.

Code:

themes.xml

     <style name="CustomAvatarStyle" parent="CometChatAvatarStyle">
        <item name="cometchatAvatarStrokeRadius">8dp</item>
        <item name="cometchatAvatarBackgroundColor">#FBAA75</item>
    </style>

    <style name="CustomCallLogStyle" parent="CometChatCallLogsStyle">
        <item name="cometchatCallLogsSeparatorColor">#F76808</item>
        <item name="cometchatCallLogsTitleTextColor">#F76808</item>
        <item name="cometchatCallLogsAvatarStyle">@style/CustomAvatarStyle</item>
    </style>

What this does: Defines two custom styles: CustomAvatarStyle sets the avatar corner radius to 8dp and background color to #FBAA75; CustomCallLogStyle sets the separator color and title text color to #F76808 and applies the custom avatar style.

Java
Kotlin

cometchatCallLogs.setStyle(R.style.CustomCallLogStyle);

cometchatCallLogs.setStyle(R.style.CustomCallLogStyle)

What this does: Applies the CustomCallLogStyle theme to the CometChatCallLogs component, changing the separator color, title text color, and avatar appearance.

To know more such attributes, visit the attributes file.

Verify: The call log list separators and title text display in orange (#F76808), and avatars display with rounded corners (8dp radius) and an orange background (#FBAA75).

Functionality

What you’re changing: Small functional customizations such as toggling visibility of UI elements.

Where: Activity or Fragment where you hold a reference to CometChatCallLogs.
Applies to: CometChatCallLogs.
Default behavior: All UI elements are visible with default settings.
Override: Call the corresponding method on the component instance.

Methods	Description	Code
`setBackIconVisibility`	Toggles visibility for the back button in the app bar	`.setBackIconVisibility(View.VISIBLE);`
`setToolbarVisibility`	Toggles visibility for the toolbar in the app bar	`.setToolbarVisibility(View.GONE);`
`setLoadingStateVisibility`	Hides the loading state while fetching call logs	`.setLoadingStateVisibility(View.GONE);`
`setErrorStateVisibility`	Hides the error state on fetching call logs	`.setErrorStateVisibility(View.GONE);`
`setEmptyStateVisibility`	Hides the empty state on fetching call logs	`.setEmptyStateVisibility(View.GONE);`
`setSeparatorVisibility`	Controls visibility of separators in the list view	`.setSeparatorVisibility(View.GONE);`

Verify: After calling a visibility method, confirm the corresponding UI element is shown or hidden.

Advanced views

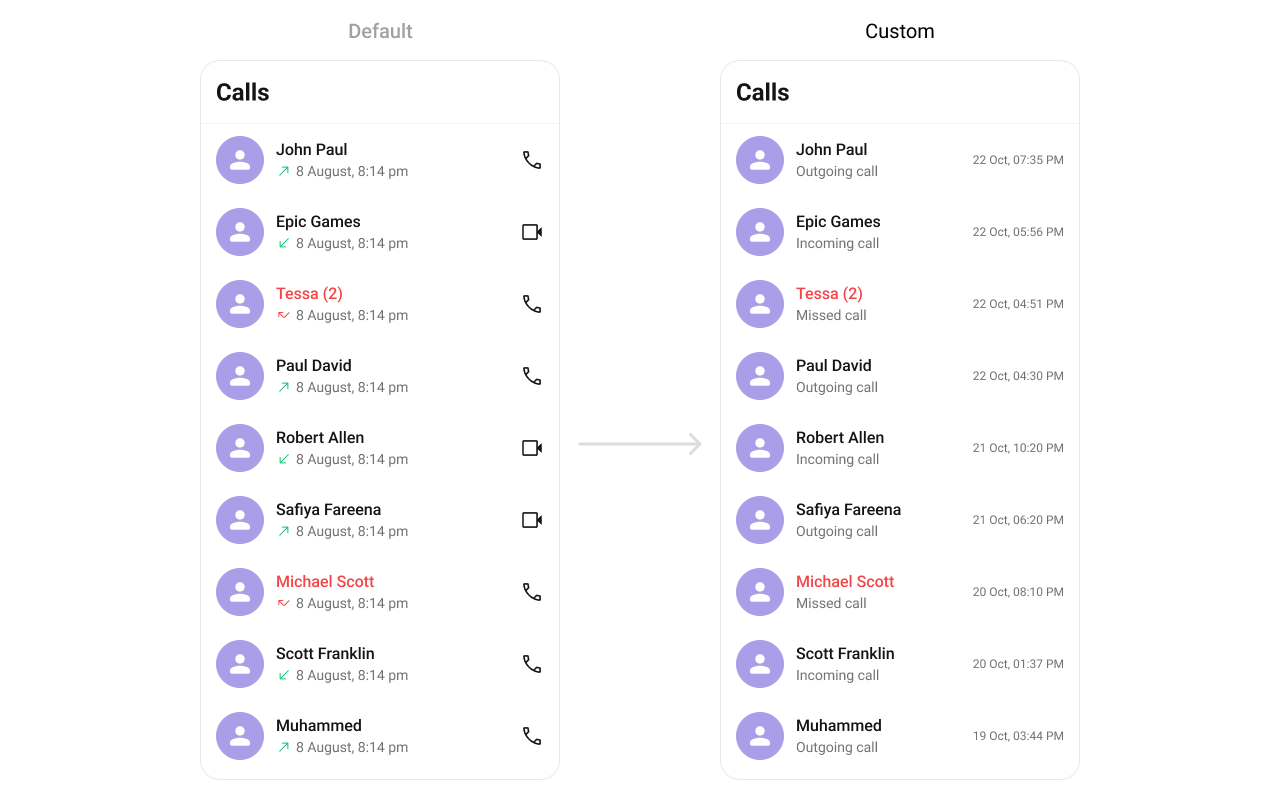

What you’re changing: The default UI elements of call log list items and the component’s chrome (loading, empty, error states, long-press options, date formatting).

Where: Activity or Fragment where you hold a reference to CometChatCallLogs.
Applies to: CometChatCallLogs.
Default behavior: The component renders its built-in views for each part of the call log item and component chrome.
Override: Call the corresponding setter method and provide a custom view or callback.

`setDateTimeFormatter`

Provides a custom implementation of DateTimeFormatterCallback to configure how time and date values are displayed. Each method corresponds to a specific case:

time(long timestamp) — Custom full timestamp format
today(long timestamp) — Called when a call log is from today
yesterday(long timestamp) — Called for yesterday’s call logs
lastWeek(long timestamp) — Call logs from the past week
otherDays(long timestamp) — Older call logs
minute(long timestamp) / hour(long timestamp) — Exact time unit
minutes(long diffInMinutesFromNow, long timestamp) — e.g., “5 minutes ago”
hours(long diffInHourFromNow, long timestamp) — e.g., “2 hours ago”

Java
Kotlin

import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Locale;


cometchatCallLogs.setDateTimeFormatter(new DateTimeFormatterCallback() {

        private final SimpleDateFormat fullTimeFormatter = new SimpleDateFormat("hh:mm a", Locale.getDefault());
        private final SimpleDateFormat dateFormatter = new SimpleDateFormat("dd MMM yyyy", Locale.getDefault());

        @Override
        public String time(long timestamp) {
            return fullTimeFormatter.format(new Date(timestamp));
        }

        @Override
        public String today(long timestamp) {
            return "Today";
        }

        @Override
        public String yesterday(long timestamp) {
            return "Yesterday";
        }

        @Override
        public String lastWeek(long timestamp) {
            return "Last Week";
        }

        @Override
        public String otherDays(long timestamp) {
            return dateFormatter.format(new Date(timestamp));
        }

        @Override
        public String minutes(long diffInMinutesFromNow, long timestamp) {
            return diffInMinutesFromNow + " mins ago";
        }

        @Override
        public String hours(long diffInHourFromNow, long timestamp) {
            return diffInHourFromNow + " hrs ago";
        }
    });

import java.text.SimpleDateFormat
import java.util.*

cometchatCallLogs.setDateTimeFormatterCallback(object : DateTimeFormatterCallback {

        private val fullTimeFormatter = SimpleDateFormat("hh:mm a", Locale.getDefault())
        private val dateFormatter = SimpleDateFormat("dd MMM yyyy", Locale.getDefault())

        override fun time(timestamp: Long): String {
            return fullTimeFormatter.format(Date(timestamp))
        }

        override fun today(timestamp: Long): String {
            return "Today"
        }

        override fun yesterday(timestamp: Long): String {
            return "Yesterday"
        }

        override fun lastWeek(timestamp: Long): String {
            return "Last Week"
        }

        override fun otherDays(timestamp: Long): String {
            return dateFormatter.format(Date(timestamp))
        }

        override fun minutes(diffInMinutesFromNow: Long, timestamp: Long): String {
            return "$diffInMinutesFromNow mins ago"
        }

        override fun hours(diffInHourFromNow: Long, timestamp: Long): String {
            return "$diffInHourFromNow hrs ago"
        }
    });

What this does: Overrides the default date/time formatting for call log timestamps. Today’s entries show “Today”, yesterday’s show “Yesterday”, recent entries show “X mins ago” or “X hrs ago”, last week’s show “Last Week”, and older entries show the full date in “dd MMM yyyy” format.

`setOptions`

Sets a predefined list of actions that users can perform when they long press a call log entry. This replaces the default options entirely.

Java
Kotlin

cometchatConversations.setOptions((context, conversation) -> Collections.emptyList());

cometchatConversations.options = Function2<Context?, Conversation?, List<CometChatPopupMenu.MenuItem?>?> { context, conversation -> emptyList<CometChatPopupMenu.MenuItem?>() }

What this does: Replaces the default long-press options with an empty list, effectively removing all long-press menu items. This sample appears as shown in the original documentation.

`addOptions`

Extends the existing set of long-press actions without removing the default ones.

Java
Kotlin

cometchatConversations.addOptions((context, conversation) -> Collections.emptyList());

cometchatConversations.addOptions { context, conversation -> emptyList<CometChatPopupMenu.MenuItem?>() }

What this does: Appends an empty list to the existing long-press options, leaving the defaults unchanged. Replace the empty list with your custom MenuItem objects to add new actions.

`setLoadingView`

Sets a custom loading view displayed when data is being fetched.

Java
Kotlin

cometchatConversations.setLoadingView(R.layout.your_loading_view);

cometchatConversations.loadingView = R.layout.your_loading_view

What this does: Replaces the default loading spinner with your custom layout resource. The custom view displays while call logs are being fetched. This sample appears as shown in the original documentation.

`setEmptyView`

Configures a custom view displayed when there are no call logs in the list.

Java
Kotlin

cometchatConversations.setEmptyView(R.layout.your_empty_view);

cometchatConversations.emptyView = R.layout.your_empty_view

What this does: Replaces the default empty state with your custom layout resource. The custom view displays when the call log list has no items. This sample appears as shown in the original documentation.

`setErrorView`

Defines a custom error state view that appears when an issue occurs while loading call logs.

Java
Kotlin

cometchatConversations.setErrorView(R.layout.your_empty_view);

cometchatConversations.errorView = R.layout.your_error_view

What this does: Replaces the default error state with your custom layout resource. The custom view displays when the component encounters an error during data fetching. This sample appears as shown in the original documentation.

`setItemView`

Assigns a completely custom list item design to the Call Logs component, replacing the default layout entirely.

Java
Kotlin

        cometChatCallLog.setItemView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return super.createView(context, listItem);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog call,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {

                super.bindView(context, createdView, call, holder, callList, position);
            }
        });

        cometChatCallLog.setItemView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {

            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
            }
        })

What this does: Registers a CallLogsViewHolderListener that replaces the entire default call log list item layout. createView inflates your custom layout, and bindView populates it with call log data.

Create a call_log_list_item.xml custom layout file to inflate in setItemView():

call_log_list_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="horizontal">

    <com.cometchat.chatuikit.shared.views.cometchatavatar.CometChatAvatar
        android:id="@+id/avatar"
        android:layout_width="@dimen/cometchat_48dp"
        android:layout_height="@dimen/cometchat_48dp" />

    <LinearLayout
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginStart="@dimen/cometchat_margin_3"
        android:layout_marginEnd="@dimen/cometchat_margin_3"
        android:gravity="center_vertical"
        android:orientation="vertical">

        <TextView
            android:id="@+id/tv_title"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:ellipsize="end"
            android:maxLines="1" />

        <TextView
            android:id="@+id/tv_subtitle"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textAppearance="?attr/cometchatTextAppearanceBodyRegular"
            android:textColor="?attr/cometchatTextColorSecondary" />

    </LinearLayout>

    <Space
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_weight="1" />

    <TextView
        android:id="@+id/tv_date_call_log"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="afafwaa" />
</LinearLayout>

What this does: Defines a custom list item layout with a CometChatAvatar, title, subtitle, and date text view — providing a compact call log item design with call status information.

Inflate the XML and initialize the views using the call log objects in setItemView:

Java
Kotlin

        cometChatCallLog.setItemView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return LayoutInflater.from(context).inflate(R.layout.call_log_list_item, null);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog call,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {
                CometChatAvatar avatar = view.findViewById(R.id.avatar);
                TextView name = view.findViewById(R.id.tv_title);
                TextView subTitle = view.findViewById(R.id.tv_subtitle);
                TextView date = view.findViewById(R.id.tv_date_call_log);

                LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(
                    ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.WRAP_CONTENT
                );

                view.setLayoutParams(layoutParams);
                CallUser callUser = (CallUser) call.getInitiator();
                CallUser callUser1 = (CallUser) call.getReceiver();
                boolean isInitiator = callUser.getUid().equals(CometChat.getLoggedInUser().getUid());
                date.setText(new SimpleDateFormat("dd MMM, hh:mm a").format(call.getInitiatedAt() * 1000));
                if (call.getStatus().equals(CometChatCallsConstants.CALL_STATUS_UNANSWERED) || call
                    .getStatus()
                    .equals(CometChatCallsConstants.CALL_STATUS_MISSED)) {
                    avatar.setAvatar(ResourcesCompat.getDrawable(getResources(), R.drawable.ic_missed_call, null));
                    subTitle.setText("Missed Call");
                } else {
                    if (isInitiator) {
                        avatar.setAvatar(ResourcesCompat.getDrawable(getResources(), R.drawable.ic_outgoing_call, null));
                        subTitle.setText("Outgoing Call");
                        name.setText(callUser1.getName());
                    } else {
                        avatar.setAvatar(ResourcesCompat.getDrawable(getResources(), R.drawable.ic_incoming_call, null));
                        subTitle.setText("Incoming Call");
                        name.setText(callUser.getName());
                    }
                }
            }
        });

        cometChatCallLog.setItemView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {
                return LayoutInflater.from(context).inflate(R.layout.call_log_list_item, null)
            }

            override fun bindView(
                context: Context,
                createdView: View,
                call: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
                val avatar: CometChatAvatar = view.findViewById<CometChatAvatar>(R.id.avatar)
                val name: TextView = view.findViewById<TextView>(R.id.tv_title)
                val subTitle: TextView = view.findViewById<TextView>(R.id.tv_subtitle)
                val date: TextView = view.findViewById<TextView>(R.id.tv_date_call_log)

                val layoutParams = LinearLayout.LayoutParams(
                    ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.WRAP_CONTENT
                )

                view.setLayoutParams(layoutParams)
                val callUser = call.initiator as CallUser
                val callUser1 = call.receiver as CallUser
                val isInitiator = callUser.uid == CometChat.getLoggedInUser().uid
                date.text = SimpleDateFormat("dd MMM, hh:mm a").format(call.initiatedAt * 1000)
                if (call.status == CometChatCallsConstants.CALL_STATUS_UNANSWERED || (call
                        .status
                        == CometChatCallsConstants.CALL_STATUS_MISSED)
                ) {
                    avatar.setAvatar(ResourcesCompat.getDrawable(resources, R.drawable.ic_missed_call, null)!!)
                    subTitle.text = "Missed Call"
                } else {
                    if (isInitiator) {
                        avatar.setAvatar(ResourcesCompat.getDrawable(resources, R.drawable.ic_outgoing_call, null)!!)
                        subTitle.text = "Outgoing Call"
                        name.text = callUser1.name
                    } else {
                        avatar.setAvatar(ResourcesCompat.getDrawable(resources, R.drawable.ic_incoming_call, null)!!)
                        subTitle.text = "Incoming Call"
                        name.text = callUser.name
                    }
                }
            }
        })

What this does: Inflates the custom call log list item layout and populates it with call data. The avatar shows a call-type icon (missed, outgoing, or incoming), the subtitle shows the call status text, and the date shows the formatted initiation timestamp. The initiator/receiver logic determines which name and icon to display based on whether the logged-in user initiated the call.

`setTitleView`

Overrides the default title view in the call log list with a custom layout.

Java
Kotlin

        cometChatCallLog.setTitleView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return super.createView(context, listItem);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog call,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {

                super.bindView(context, createdView, call, holder, callList, position);
            }
        });

        cometChatCallLog.setTitleView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {

            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
            }
        })

What this does: Registers a CallLogsViewHolderListener that provides a custom view for the title area of each call log item. createView inflates your layout, and bindView populates it with call log data.

Java
Kotlin

YourActivity.java

        cometChatcallLog.setTitleView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return new TextView(context);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog callLog,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {

                TextView textView = (TextView) createdView;
                textView.setTextAppearance(CometChatTheme.getTextAppearanceHeading4Regular(context));
                textView.setTextColor(CometChatTheme.getTextColorPrimary(context));
                CallUtils.getCallLogUserName(callLog);
                if (callLog.getTotalDurationInMinutes() > 0) {
                    String duration = String.valueOf(callLog.getTotalDurationInMinutes());
                    textView.setText(CallUtils.getCallLogUserName(callLog) + " • \uD83D\uDD5A\uFE0F " + duration
                        .substring(0, duration.length() > 4 ? 4 : 3) + " mins");
                } else textView.setText(CallUtils.getCallLogUserName(callLog));
            }
        });

YourActivity.kt

        cometChatCallLog.setTitleView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {
                return TextView(context)
            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
                val textView = createdView as TextView
                textView.setTextAppearance(CometChatTheme.getTextAppearanceHeading4Regular(context))
                textView.setTextColor(CometChatTheme.getTextColorPrimary(context))
                CallUtils.getCallLogUserName(callLog)
                if (callLog.totalDurationInMinutes > 0) {
                    val duration = callLog.totalDurationInMinutes.toString()
                    textView.text = CallUtils.getCallLogUserName(callLog) + " • \uD83D\uDD5A\uFE0F " + duration
                        .substring(0, if (duration.length > 4) 4 else 3) + " mins"
                } else textView.text = CallUtils.getCallLogUserName(callLog)
            }
        })

What this does: Inflates a custom title view that shows the caller name from CallUtils.getCallLogUserName(callLog). If the call duration is greater than 0 minutes, it appends a clock emoji and the duration in minutes. If the duration is 0, it shows only the caller name.

`setLeadingView`

Customizes the leading view of each call log item — the caller’s avatar or profile picture area.

Java
Kotlin

        cometChatCallLog.setLeadingView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return super.createView(context, listItem);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog call,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {

                super.bindView(context, createdView, call, holder, callList, position);
            }
        });

        cometChatCallLog.setLeadingView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {

            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
            }
        })

What this does: Registers a CallLogsViewHolderListener that provides a custom view for the leading (left) area of each call log item. createView inflates your layout, and bindView populates it with call log data.

Java
Kotlin

YourActivity.java

cometChatcallLog.setLeadingView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return new CometChatAvatar(context);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog callLog,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {
                CometChatAvatar avatar = (CometChatAvatar) createdView;

                if (callLog.getInitiator() instanceof CallUser) {
                    CallUser initiator = (CallUser) callLog.getInitiator();
                    boolean isLoggedInUser = CallUtils.isLoggedInUser(initiator);
                    boolean isMissedOrUnanswered = callLog.getStatus().equals(CometChatCallsConstants.CALL_STATUS_UNANSWERED) || callLog
                        .getStatus()
                        .equals(CometChatCallsConstants.CALL_STATUS_MISSED);

                    if (callLog.getType().equals(CometChatCallsConstants.CALL_TYPE_AUDIO) || callLog
                        .getType()
                        .equals(CometChatCallsConstants.CALL_TYPE_VIDEO) || callLog.getType().equals(CometChatCallsConstants.CALL_TYPE_AUDIO_VIDEO)) {

                        if (isLoggedInUser) {
                            avatar.setAvatar(ResourcesCompat.getDrawable(context.getResources(), R.drawable.outgoing_voice_call, null));
                        } else if (isMissedOrUnanswered) {
                            avatar.setAvatar(ResourcesCompat.getDrawable(context.getResources(), R.drawable.miss_call, null));

                        } else {
                            avatar.setAvatar(ResourcesCompat.getDrawable(context.getResources(), R.drawable.incoming_voice_call, null));
                        }
                    }
                }
                LinearLayout.LayoutParams layoutParams = new LinearLayout.LayoutParams(
                    Utils.convertDpToPx(context, 50),
                    Utils.convertDpToPx(context, 50)
                );
                avatar.setLayoutParams(layoutParams);
            }
        });

YourActivity.kt

cometChatCallLog.setLeadingView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {
                return CometChatAvatar(context)
            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
                val avatar = createdView as CometChatAvatar

                if (callLog.initiator is CallUser) {
                    val initiator = callLog.initiator as CallUser
                    val isLoggedInUser = CallUtils.isLoggedInUser(initiator)
                    val isMissedOrUnanswered = callLog.status == CometChatCallsConstants.CALL_STATUS_UNANSWERED || (callLog
                        .status
                        == CometChatCallsConstants.CALL_STATUS_MISSED)

                    if (callLog.type == CometChatCallsConstants.CALL_TYPE_AUDIO || (callLog
                            .type
                            == CometChatCallsConstants.CALL_TYPE_VIDEO) || callLog.type == CometChatCallsConstants.CALL_TYPE_AUDIO_VIDEO
                    ) {
                        if (isLoggedInUser) {
                            avatar.setAvatar(ResourcesCompat.getDrawable(context.resources, R.drawable.outgoing_voice_call, null)!!)
                        } else if (isMissedOrUnanswered) {
                            avatar.setAvatar(ResourcesCompat.getDrawable(context.resources, R.drawable.miss_call, null)!!)
                        } else {
                            avatar.setAvatar(ResourcesCompat.getDrawable(context.resources, R.drawable.incoming_voice_call, null)!!)
                        }
                    }
                }
                val layoutParams = LinearLayout.LayoutParams(
                    Utils.convertDpToPx(context, 50),
                    Utils.convertDpToPx(context, 50)
                )
                avatar.layoutParams = layoutParams
            }
        })

What this does: Implements a custom leading view that shows a call-type icon based on the call status and direction. If the logged-in user initiated the call, it shows an outgoing call icon. If the call was missed or unanswered, it shows a missed call icon. Otherwise, it shows an incoming call icon. The avatar is sized to 50dp × 50dp.

`setSubtitleView`

Customizes the subtitle view of each call log item. The subtitle displays additional information below the title, such as call type (missed, incoming, outgoing).

Java
Kotlin

        cometChatCallLog.setSubtitleView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return super.createView(context, listItem);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog call,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {

                super.bindView(context, createdView, call, holder, callList, position);
            }
        });

        cometChatCallLog.setSubtitleView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {

            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
            }
        })

What this does: Registers a CallLogsViewHolderListener that provides a custom view for the subtitle area of each call log item. createView inflates your layout, and bindView populates it with call log data.

Java
Kotlin

YourActivity.java

        cometChatCallLog.setSubtitleView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return new TextView(context);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog callLog,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {
                TextView textView = (TextView) createdView;
                CallUser callUser = (CallUser) callLog.getInitiator();
                boolean isInitiator = callUser.getUid().equals(CometChat.getLoggedInUser().getUid());
                if (callLog.getStatus().equals(CometChatCallsConstants.CALL_STATUS_UNANSWERED) || callLog
                    .getStatus()
                    .equals(CometChatCallsConstants.CALL_STATUS_MISSED)) {
                    textView.setText("Missed Call");
                } else {
                    if (isInitiator) {
                        textView.setText("Outgoing Call");
                    } else {
                        textView.setText("Incoming Call");
                    }
                }
            }
        });

YourActivity.kt

        cometChatCallLog.setSubtitleView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {
                return TextView(context)
            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
                val textView = createdView as TextView
                val callUser = callLog.initiator as CallUser
                val isInitiator = callUser.uid == CometChat.getLoggedInUser().uid
                if (callLog.status == CometChatCallsConstants.CALL_STATUS_UNANSWERED || (callLog
                        .status
                        == CometChatCallsConstants.CALL_STATUS_MISSED)
                ) {
                    textView.text = "Missed Call"
                } else {
                    if (isInitiator) {
                        textView.text = "Outgoing Call"
                    } else {
                        textView.text = "Incoming Call"
                    }
                }
            }
        })

What this does: Replaces the default subtitle with a custom TextView that shows the call direction. If the call was missed or unanswered, it displays “Missed Call”. If the logged-in user initiated the call, it displays “Outgoing Call”. Otherwise, it displays “Incoming Call”.

`setTrailingView`

Customizes the trailing (end) view of a call log item, used for call duration, timestamps, or action buttons.

Java
Kotlin

        cometChatCallLog.setTrailingView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return super.createView(context, listItem);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog call,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {

                super.bindView(context, createdView, call, holder, callList, position);
            }
        });

        cometChatCallLog.setTrailingView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {

            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
            }
        })

What this does: Registers a CallLogsViewHolderListener that provides a custom view for the trailing (right) area of each call log item. createView inflates your layout, and bindView populates it with call log data.

Java
Kotlin

YourActivity.java

        cometChatcallLog.setTrailingView(new CallLogsViewHolderListener() {
            @Override
            public View createView(Context context, CometchatCallLogsItemsBinding listItem) {
                return new TextView(context);
            }

            @Override
            public void bindView(Context context,
                                 View createdView,
                                 CallLog callLog,
                                 RecyclerView.ViewHolder holder,
                                 List<CallLog> callList,
                                 int position) {
                TextView textView = (TextView) createdView;
                textView.setText(new SimpleDateFormat("dd MMM, hh:mm a").format(callLog.getInitiatedAt() * 1000));
            }
        });

YourActivity.kt

        cometChatCallLog.setTrailingView(object : CallLogsViewHolderListener() {
            override fun createView(context: Context?, listItem: CometchatCallLogsItemsBinding?): View {
                return TextView(context)
            }

            override fun bindView(
                context: Context,
                createdView: View,
                callLog: CallLog,
                holder: RecyclerView.ViewHolder,
                callList: List<CallLog>,
                position: Int
            ) {
                val textView = createdView as TextView
                textView.text = SimpleDateFormat("dd MMM, hh:mm a").format(callLog.initiatedAt * 1000)
            }
        })

What this does: Replaces the default trailing view with a custom TextView that shows the call initiation timestamp formatted as “dd MMM, hh:mm a” (e.g., “10 Jul, 02:30 PM”).

Verify: After setting any advanced view, confirm the custom view renders in the correct position within the call log list item, and the data binding populates correctly for each call log entry.

Customization matrix

What you want to change	Where	Property/API	Example
Avatar style (corner radius, background)	`themes.xml`	`CometChatCallLogsStyle` with `cometchatCallLogsAvatarStyle`	`<item name="cometchatAvatarStrokeRadius">8dp</item>`
Separator color	`themes.xml`	`CometChatCallLogsStyle` with `cometchatCallLogsSeparatorColor`	`<item name="cometchatCallLogsSeparatorColor">#F76808</item>`
Title text color	`themes.xml`	`CometChatCallLogsStyle` with `cometchatCallLogsTitleTextColor`	`<item name="cometchatCallLogsTitleTextColor">#F76808</item>`
Apply a custom style	Activity/Fragment	`setStyle(int styleRes)`	`cometchatCallLogs.setStyle(R.style.CustomCallLogStyle);`
Back button visibility	Activity/Fragment	`setBackIconVisibility(int)`	`.setBackIconVisibility(View.VISIBLE);`
Toolbar visibility	Activity/Fragment	`setToolbarVisibility(int)`	`.setToolbarVisibility(View.GONE);`
Loading state visibility	Activity/Fragment	`setLoadingStateVisibility(int)`	`.setLoadingStateVisibility(View.GONE);`
Error state visibility	Activity/Fragment	`setErrorStateVisibility(int)`	`.setErrorStateVisibility(View.GONE);`
Empty state visibility	Activity/Fragment	`setEmptyStateVisibility(int)`	`.setEmptyStateVisibility(View.GONE);`
Separator visibility	Activity/Fragment	`setSeparatorVisibility(int)`	`.setSeparatorVisibility(View.GONE);`
Date/time formatting	Activity/Fragment	`setDateTimeFormatter(DateTimeFormatterCallback)`	See `setDateTimeFormatter` code above
Long-press options (replace)	Activity/Fragment	`setOptions(Function2)`	See `setOptions` code above
Long-press options (append)	Activity/Fragment	`addOptions(Function2)`	See `addOptions` code above
Loading view	Activity/Fragment	`setLoadingView(int)`	`cometchatConversations.setLoadingView(R.layout.your_loading_view);`
Empty view	Activity/Fragment	`setEmptyView(int)`	`cometchatConversations.setEmptyView(R.layout.your_empty_view);`
Error view	Activity/Fragment	`setErrorView(int)`	`cometchatConversations.setErrorView(R.layout.your_empty_view);`
Leading view (avatar area)	Activity/Fragment	`setLeadingView(CallLogsViewHolderListener)`	See `setLeadingView` code above
Title view	Activity/Fragment	`setTitleView(CallLogsViewHolderListener)`	See `setTitleView` code above
Subtitle view	Activity/Fragment	`setSubtitleView(CallLogsViewHolderListener)`	See `setSubtitleView` code above
Trailing view	Activity/Fragment	`setTrailingView(CallLogsViewHolderListener)`	See `setTrailingView` code above
Entire list item	Activity/Fragment	`setItemView(CallLogsViewHolderListener)`	See `setItemView` code above
Filter call logs	Activity/Fragment	`setCallLogRequestBuilder(CallLogRequestBuilder)`	See Filters code above

Common pitfalls & fixes

Pitfall	Fix
Component does not render	Ensure `CometChatUIKit.init()` is called and awaited before using any UI Kit component. If `init()` has not completed, the component will not load data.
Call log list is empty despite having call history	Verify that a user is logged in with `CometChatUIKit.login()` before displaying the component. The component fetches call logs for the logged-in user only.
Filters not applied	Ensure you call `setCallLogRequestBuilder(callLogRequestBuilder)` on the `CometChatCallLogs` instance after creating and configuring the builder.
Custom style not visible	Verify the style parent is `CometChatCallLogsStyle` and that you call `setStyle(R.style.YourStyle)` on the component instance.
`setOnItemClick` not firing	If the component is inside a parent view that intercepts touch events, ensure the parent does not consume the click. Verify the callback is set before the component loads data.
Custom view returns null in `createView`	If `createView` returns `null`, the default view is used. Return a valid inflated `View` to replace the default.
Call status icons not showing in custom leading view	Ensure you check `callLog.getStatus()` against `CometChatCallsConstants.CALL_STATUS_UNANSWERED` and `CometChatCallsConstants.CALL_STATUS_MISSED` to determine the correct icon.
View binding reference is null	If using view binding, initialize it with `binding = YourXmlFileNameBinding.inflate(getLayoutInflater())` before accessing `binding.callLog`.

FAQ

Q: How do I filter call logs to show only calls with recordings? A: Create a CallLogRequest.CallLogRequestBuilder, call setHasRecording(true), and pass it to setCallLogRequestBuilder. Q: Can I use CometChatCallLogs in both an Activity and a Fragment? A: Yes. In an Activity, create new CometChatCallLogs(this) and call setContentView. In a Fragment, create new CometChatCallLogs(requireContext()) and return it from onCreateView. Q: Does CometChatCallLogs emit any events? A: No. The CometChatCallLogs component does not have any exposed events. Q: How do I customize the call log item to show call direction icons? A: Use setLeadingView with a CallLogsViewHolderListener. In bindView, check CallUtils.isLoggedInUser(initiator) and callLog.getStatus() to determine whether to show an outgoing, incoming, or missed call icon. Q: How do I show call duration in the title? A: Use setTitleView with a CallLogsViewHolderListener. In bindView, check callLog.getTotalDurationInMinutes() and append the duration to the caller name from CallUtils.getCallLogUserName(callLog).

​When to use this

​Prerequisites

​Quick start

​Core concepts

​Implementation

​Activity integration

​Fragment integration

​Actions

​setOnItemClick

​setOnItemLongClick

​setOnBackPressListener

​setOnError

​setOnLoad

​setOnEmpty

​Filters

​Events

​Style

​Functionality

​Advanced views

​setDateTimeFormatter

​setOptions

​addOptions

​setLoadingView

​setEmptyView

​setErrorView

​setItemView

​setTitleView

​setLeadingView

​setSubtitleView

​setTrailingView

​Customization matrix

​Common pitfalls & fixes

​FAQ

​Next steps

When to use this

Prerequisites

Quick start

Core concepts

Implementation

Activity integration

Fragment integration

Actions

`setOnItemClick`

`setOnItemLongClick`

`setOnBackPressListener`

`setOnError`

`setOnLoad`

`setOnEmpty`

Filters

Events

Style

Functionality

Advanced views

`setDateTimeFormatter`

`setOptions`

`addOptions`

`setLoadingView`

`setEmptyView`

`setErrorView`

`setItemView`

`setTitleView`

`setLeadingView`

`setSubtitleView`

`setTrailingView`

Customization matrix

Common pitfalls & fixes

FAQ

Next steps
