CometChatIncomingCall is a Component that serves as a visual representation when the user receives an incoming call, such as a voice call or video call, providing options to answer or decline the call.

When to use this

You need a full-screen UI that appears when the logged-in user receives an incoming voice or video call.
You want to provide accept and reject buttons so the user can answer or decline the call.
You need to display the caller’s name and avatar on the incoming call screen.
You want to play a custom ringtone or disable the default call sound.
You need to customize the incoming call screen appearance with styles or custom views.

Prerequisites

CometChat SDK initialized with CometChatUIKit.init() and a user logged in.
The cometchat-chat-uikit-android dependency added to your project.
A valid layout_activity.xml or Activity/Fragment where you will place the component.
A User object with uid, name, and avatar set, representing the caller.

Quick start

Open your layout_activity.xml file.
Add the CometChatIncomingCall XML element:

<com.cometchat.chatuikit.calls.incomingcall.CometChatIncomingCall
    android:id="@+id/incoming_call"
    android:layout_width="match_parent"
    android:layout_height="match_parent" />

What this does: Adds the CometChatIncomingCall component to your layout. It fills the available width and height and renders the incoming call screen.

In your Activity or Fragment, get a reference to the component and set the User object:

Java
Kotlin

CometChatIncomingCall cometchatIncomingCall = binding.incomingCall; // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(getLayoutInflater());` to use views like `binding.incomingCall` after enabling view binding.
User user = new User();
user.setUid(""); //Required
user.setName(""); //Required
user.setAvatar(""); //Required

cometchatIncomingCall.setUser(user); //Required - set the user object

val cometchatIncomingCall: CometChatIncomingCall = binding.incomingCall  // 'binding' is a view binding instance. Initialize it with `binding = YourXmlFileNameBinding.inflate(layoutInflater)` to use views like `binding.incomingCall` after enabling view binding.
val user = User()
user.uid = "" //Required
user.name = "" //Required
user.avatar = "" //Required

cometchatIncomingCall.setUser(user) //Required - set the user object

What this does: Retrieves the CometChatIncomingCall view from the layout binding, creates a User object with the caller’s details, and passes it to the component using setUser(). The component then displays the caller’s name and avatar.

Build and run your app.
Verify that the incoming call screen appears with the caller’s avatar, name, and accept/reject buttons.

If you need to add the component programmatically instead of XML, see the Activity integration or Fragment integration subsections in Implementation.

Core concepts

CometChatIncomingCall: The main component class that renders the incoming call screen. It can be added via XML layout, Activity, or Fragment.
Actions: Callbacks such as setOnAcceptClick, setOnRejectClick, and setOnError that let you respond to user interactions on the call screen.
Filters: The CometChatIncomingCall component does not expose any filters.
Events: The CometChatIncomingCall component does not expose any events.
Style: XML theme styles (parent CometChatIncomingCallStyle) applied via setStyle() to customize colors, fonts, and sub-component styles.
Advanced views: Methods like setItemView, setLeadingView, setTitleView, setSubtitleView, and setTrailingView that let you replace default UI elements with custom layouts.

Implementation

Activity integration

What you’re changing: How you add CometChatIncomingCall to an Activity programmatically.

Where: Your Activity class (e.g., YourActivity.java or YourActivity.kt).
Applies to: CometChatIncomingCall.
Default behavior: The component is not added until you set it as the content view.
Override: Create a CometChatIncomingCall instance, set the User object, and call setContentView.
Code:

Java
Kotlin

YourActivity.java

CometChatIncomingCall cometchatIncomingCall;

@Override
protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);

    cometchatIncomingCall = new CometChatIncomingCall(this);

    User user = new User();
    user.setUid(""); //Required
    user.setName(""); //Required
    user.setAvatar(""); //Required

    cometchatIncomingCall.setUser(user); //Required - set the user object

    setContentView(cometchatIncomingCall);
}

YourActivity.kt

override fun onCreate(savedInstanceState: Bundle?) {
    super.onCreate(savedInstanceState)

    cometchatIncomingCall = CometChatIncomingCall(this)

    val user = User()
    user.uid = "" //Required
    user.name = "" //Required
    user.avatar = "" //Required

    cometchatIncomingCall.setUser(user) //Required - set the user object

    setContentView(cometchatIncomingCall)
}

What this does: Creates a new CometChatIncomingCall instance, configures a User object with the caller’s details, passes it to the component, and sets the component as the entire content view of the Activity. The incoming call screen renders immediately after the Activity is created.

Verify: The incoming call screen fills the screen with the caller’s avatar, name, and accept/reject buttons when the Activity launches.

Fragment integration

What you’re changing: How you add CometChatIncomingCall to a Fragment.

Where: Your Fragment class (e.g., YourFragment.java or YourFragment.kt).
Applies to: CometChatIncomingCall.
Default behavior: The component is not added until you return it from onCreateView.
Override: Create a CometChatIncomingCall instance, set the User object, and return it from onCreateView.
Code:

Java
Kotlin

YourFragment.java

CometChatIncomingCall cometchatIncomingCall;

@Override
public View onCreateView(@NonNull LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
    cometchatIncomingCall = new CometChatIncomingCall(requireContext());

    User user = new User();
    user.setUid(""); //Required
    user.setName(""); //Required
    user.setAvatar(""); //Required

    cometchatIncomingCall.setUser(user); //Required - set the user object

    return cometchatIncomingCall;
}

YourFragment.kt

private lateinit var cometchatIncomingCall: CometChatIncomingCall

override fun onCreateView(
    inflater: LayoutInflater,
    container: ViewGroup?,
    savedInstanceState: Bundle?
): View {
    cometchatIncomingCall = CometChatIncomingCall(requireContext())

    val user = User()
    user.uid = "" //Required
    user.name = "" //Required
    user.avatar = "" //Required

    cometchatIncomingCall.setUser(user) //Required - set the user object

    return cometchatIncomingCall
}

What this does: Creates a new CometChatIncomingCall instance inside the Fragment, configures a User object with the caller’s details, passes it to the component, and returns it as the Fragment’s root view. The incoming call screen renders when the Fragment is displayed.

Verify: The incoming call screen appears inside the Fragment’s container with the caller’s avatar, name, and accept/reject buttons.

Actions

What you’re changing: How the component responds to user interactions such as accepting a call, rejecting a call, or handling errors.

Where: Activity or Fragment where you hold a reference to CometChatIncomingCall (e.g., cometchatIncomingCall).
Applies to: CometChatIncomingCall.
Default behavior: Predefined actions execute automatically (e.g., tapping the accept button answers the call, tapping the reject button declines the call).
Override: Call the corresponding setter method to replace the default behavior with your own logic.

`setOnAcceptClick`

Function invoked when the user clicks the accept button, initiating a predefined action. Override this to customize the accept behavior.

Java
Kotlin

cometchatIncomingCall.setOnAcceptClick(new OnClick() {
    @Override
    public void onClick() {
        //TODO
    }
});

cometchatIncomingCall.setOnAcceptCallClick(OnClick {
    //TODO
})

What this does: Replaces the default accept-button behavior. When the user taps the accept button, your custom OnClick lambda executes instead of the built-in call-accept logic.

`setOnRejectClick`

Function invoked when the user clicks the reject button, initiating a predefined action. Override this to customize the reject behavior.

Java
Kotlin

cometchatIncomingCall.setOnRejectClick(new OnClick() {
    @Override
    public void onClick() {
        //TODO
    }
});

cometchatIncomingCall.setOnDeclineCallClick(OnClick {
    //TODO
})

What this does: Replaces the default reject-button behavior. When the user taps the reject button, your custom OnClick lambda executes instead of the built-in call-decline logic.

`setOnError`

Registers an error handler to customize error handling for the component.

Java
Kotlin

cometchatIncomingCall.setOnError(new OnError() {
    @Override
    public void onError(Context context, CometChatException e) {
        //TODO
    }
});

cometchatIncomingCall.setOnError(OnError { context, e ->
    //TODO
})

What this does: Registers an error listener. If the component encounters an error (e.g., call failure), your callback receives the Context and CometChatException so you can handle it with custom logic.

Verify: After setting an action callback, trigger the corresponding user interaction (tap accept, tap reject) and confirm your custom logic executes instead of the default behavior.

Filters

What you’re changing: Which data is displayed in the component.

Where: Activity or Fragment where you hold a reference to CometChatIncomingCall.
Applies to: CometChatIncomingCall.
Default behavior: The component displays the incoming call screen for the configured user.
Override: The CometChatIncomingCall component does not have any exposed filters.

Events

What you’re changing: How your app reacts to global events emitted by the component.

Where: Any Activity, Fragment, or class where you want to listen for events.
Applies to: CometChatIncomingCall.
Default behavior: No external listeners are registered.
Override: The CometChatIncomingCall component does not have any exposed events.

Style

What you’re changing: The visual appearance of the CometChatIncomingCall component using XML theme styles.

Where: themes.xml for style definitions, and your Activity/Fragment for applying the style.
Applies to: CometChatIncomingCall.
Default behavior: The component uses the default CometChatIncomingCallStyle.
Override: Define a custom style with parent CometChatIncomingCallStyle in themes.xml, then call setStyle() on the component.

Code:

themes.xml

<style name="CustomAvatarStyle" parent="CometChatAvatarStyle">
    <item name="cometchatAvatarStrokeRadius">8dp</item>
    <item name="cometchatAvatarBackgroundColor">#FBAA75</item>
</style>

<style name="CustomIncomingCallStyle" parent="CometChatIncomingCallStyle">
        <item name="cometchatIncomingCallBackgroundColor">#AA9EE8</item>
        <item name="cometchatIncomingCallIconTint">?attr/cometchatPrimaryColor</item>
        <item name="cometchatIncomingCallRejectButtonBackgroundColor">?attr/cometchatColorWhite</item>
        <item name="cometchatIncomingCallAcceptButtonBackgroundColor">?attr/cometchatPrimaryColor</item>
        <item name="cometchatIncomingCallRejectButtonTextColor">?attr/cometchatErrorColor</item>
        <item name="cometchatIncomingCallAcceptButtonTextColor">?attr/cometchatColorWhite</item>
        <item name="cometchatIncomingCallRejectButtonTextAppearance">?attr/cometchatTextAppearanceButtonMedium</item>
        <item name="cometchatIncomingCallAcceptButtonTextAppearance">?attr/cometchatTextAppearanceButtonMedium</item>
        <item name="cometchatIncomingCallAvatarStyle">@style/CustomAvatarStyle</item>
</style>

What this does: Defines two custom styles: CustomAvatarStyle sets the avatar corner radius to 8dp and background color to #FBAA75; CustomIncomingCallStyle sets the background to #AA9EE8, configures accept/reject button colors and text appearances, and applies the custom avatar style.

Java
Kotlin

cometchatIncomingCall.setStyle(R.style.CustomIncomingCallStyle);

cometchatIncomingCall.setStyle(R.style.CustomIncomingCallStyle)

What this does: Applies the CustomIncomingCallStyle theme to the CometChatIncomingCall component, changing the background color, button colors, text appearances, and avatar style.

To know more such attributes, visit the attributes file.

Verify: The incoming call screen displays with a purple background (#AA9EE8), custom button colors, and avatars with rounded corners (8dp radius) and an orange background (#FBAA75).

Functionality

What you’re changing: Functional customizations such as setting the call object, configuring custom sounds, or disabling call sounds.

Where: Activity or Fragment where you hold a reference to CometChatIncomingCall.
Applies to: CometChatIncomingCall.
Default behavior: The component uses default call sound and requires a User object to display caller information.
Override: Call the corresponding method on the component instance.

Property	Description	Code
`setCall`	Sets the Call object for which the incoming call screen is displayed. Required for call actions.	`.setCall(call)`
`setCustomSoundForCalls`	Defines the path for custom sound for calls on the incoming call screen.	`.setCustomSoundForCalls(@RawRes int)`
`disableSoundForCalls`	Defines whether to disable sound for the call on the incoming call screen.	`.disableSoundForCalls(true)`

What this does: These methods configure the call behavior. setCall associates a Call object with the screen so accept/reject actions work correctly. setCustomSoundForCalls plays a custom ringtone from your res/raw directory. disableSoundForCalls silences the incoming call ringtone.

Verify: After calling setCall(call), confirm the accept and reject buttons trigger the correct call actions. After calling disableSoundForCalls(true), confirm no ringtone plays on incoming calls.

Advanced views

What you’re changing: The default UI elements of the incoming call screen with custom layouts.

Where: Activity or Fragment where you hold a reference to CometChatIncomingCall.
Applies to: CometChatIncomingCall.
Default behavior: The component renders its built-in views for the caller’s avatar, name, subtitle, and trailing area.
Override: Call the corresponding setter method and provide a custom view.

`setItemView`

Sets a custom view for rendering the entire incoming call card. Use Cases:

Customize the call card UI for incoming calls.
Display additional user details (e.g., caller ID, location).
Integrate custom animations for call alerts.

Java
Kotlin

YourActivity.java

cometchatIncomingCall.setItemView(view);

YourActivity.kt

cometchatIncomingCall.setItemView(view)

What this does: Replaces the entire default incoming call card with your custom View. The custom view is responsible for rendering all caller information and call controls.

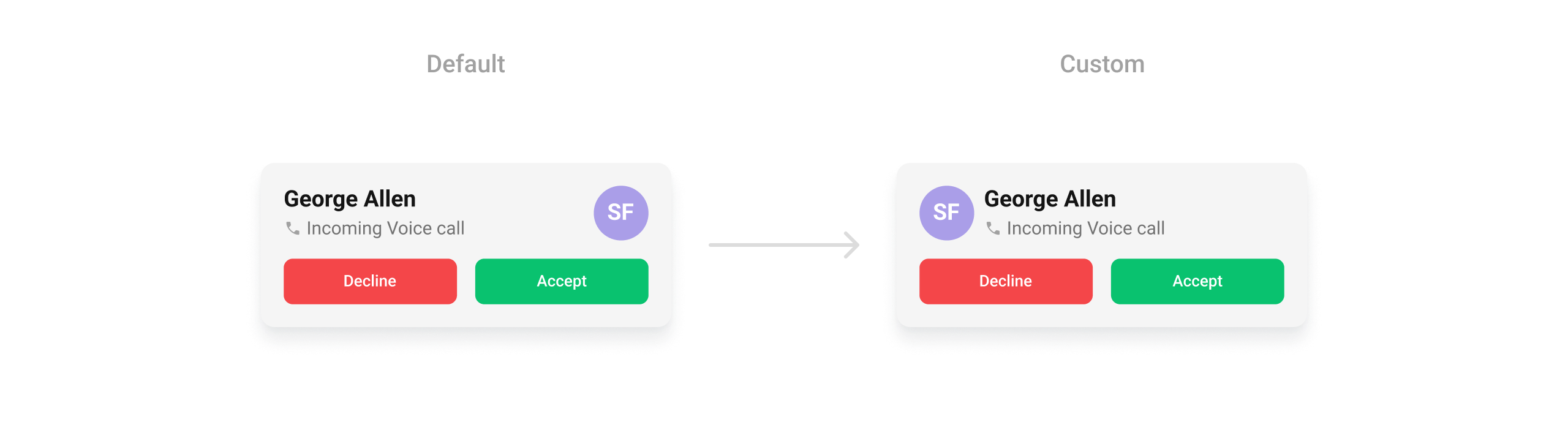

`setLeadingView`

Customizes the leading section of the component. This area displays the caller’s avatar or profile picture by default. Use Cases:

Display a profile picture with call status effects.
Show a custom ringing animation around the avatar.
Replace the avatar with a caller ID card.

Java
Kotlin

YourActivity.java

cometchatIncomingCall.setLeadingView(view);

YourActivity.kt

cometchatIncomingCall.setLeadingView(view)

What this does: Replaces the default leading (left) area of the incoming call screen with your custom View.

Example:

leading_view.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="@dimen/cometchat_45dp"
    android:layout_height="@dimen/cometchat_45dp"
    android:orientation="vertical">

    <com.cometchat.chatuikit.shared.views.avatar.CometChatAvatar
        android:id="@+id/avatar"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

</RelativeLayout>

What this does: Defines a custom leading view layout with a CometChatAvatar inside a RelativeLayout sized at 45dp by 45dp.

Java
Kotlin

YourActivity.java

 View leadingView = LayoutInflater.from(getContext()).inflate(R.layout.leading_view, null);
CometChatAvatar avatar = leadingView.findViewById(R.id.avatar);
User callUser = (User) call.getCallInitiator();
avatar.setAvatar(callUser.getName(), callUser.getAvatar());
leadingView.setLayoutParams(new LinearLayout.LayoutParams(
            Utils.convertDpToPx(requireContext(), 45),
            Utils.convertDpToPx(requireContext(), 45)
        ));
cometchatIncomingCall.setTrailingView(null);
cometchatIncomingCall.setLeadingView(leadingView);

YourActivity.kt

val leadingView: View = LayoutInflater.from(this).inflate(android.R.layout.leading_view, null)
val avatar = leadingView.findViewById<CometChatAvatar>(android.R.id.avatar)
val callUser = call.getCallInitiator()
avatar.setAvatar(callUser.name, callUser.avatar)
leadingView.layoutParams = LinearLayout.LayoutParams(
            Utils.convertDpToPx(this, 45),
            Utils.convertDpToPx(this, 45)
        )
cometchatIncomingCall.setTrailingView(null);
cometchatIncomingCall.setLeadingView(leadingView)

What this does: Inflates the leading_view.xml layout, retrieves the caller’s avatar from the Call object, sets the avatar image and name, configures the layout size to 45dp, clears the trailing view, and sets the custom leading view on the component.

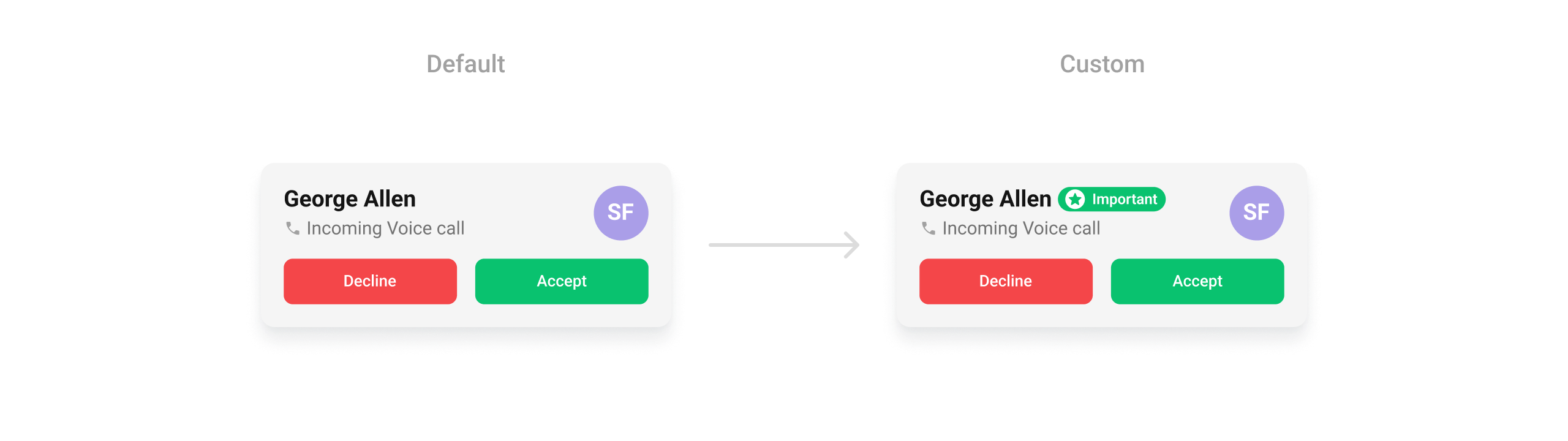

`setTitleView`

Sets a custom title view, used for the caller’s name or call type. Use Cases:

Display the caller’s full name with a verified badge.
Indicate the call type (Voice Call, Video Call).
Show real-time status (“Ringing…”, “Call from Work Contact”, etc.).

Java
Kotlin

YourActivity.java

cometchatIncomingCall.setTitleView(view);

YourActivity.kt

cometchatIncomingCall.setTitleView(view)

What this does: Replaces the default title area of the incoming call screen with your custom View.

Example:

custom_title_view.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/user_layout"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:gravity="center_vertical"
    android:orientation="horizontal">

    <TextView
        android:id="@+id/title"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_weight="1"
        android:text="teacher"
        android:textAppearance="?attr/cometchatTextAppearanceHeading4Medium"
        android:textColor="?attr/cometchatTextColorPrimary" />

    <View
        android:id="@+id/role"
        android:layout_width="50dp"
        android:layout_height="15dp"
        android:layout_marginStart="@dimen/cometchat_16dp"
        android:background="@drawable/important" />
</LinearLayout>

What this does: Defines a custom title view layout with a TextView for the caller’s name and a View element for a role badge indicator, arranged horizontally.

Java
Kotlin

YourActivity.java

 View titleView = LayoutInflater.from(this).inflate(R.layout.custom_title_view, null);
TextView title = titleView.findViewById(R.id.title);
title.setText("George Allen");
titleView.setLayoutParams(new LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.WRAP_CONTENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        ));
cometchatIncomingCall.setTitleView(titleView);

YourActivity.kt

 val titleView: View = LayoutInflater.from(this).inflate(R.layout.custom_title_view, null)
        val title = titleView.findViewById<TextView>(R.id.title)
        title.text = "George Allen"
        titleView.layoutParams = LinearLayout.LayoutParams(
            ViewGroup.LayoutParams.WRAP_CONTENT,
            ViewGroup.LayoutParams.WRAP_CONTENT
        )
cometchatIncomingCall.setTitleView(titleView)

What this does: Inflates the custom_title_view.xml layout, sets the title text to “George Allen”, configures wrap-content layout parameters, and applies the custom title view to the incoming call component.

`setSubtitleView`

Customizes the subtitle view, used for additional call details below the title. Use Cases:

Display call duration if available.
Show network strength indicators.
Include a custom message like “Connecting…”.

Java
Kotlin

YourActivity.java

cometchatIncomingCall.setSubtitleView(view);

YourActivity.kt

cometchatIncomingCall.setSubtitleView(view)

What this does: Replaces the default subtitle area of the incoming call screen with your custom View. Use this to show additional information below the caller’s name.

`setTrailingView`

Customizes the trailing section for actions or additional call-related UI elements. Use Cases:

Add custom accept/reject buttons.
Show a mute button before answering.
Display a text response option (e.g., “Can’t talk now”)

Java
Kotlin

YourActivity.java

cometchatIncomingCall.setTrailingView(view);

YourActivity.kt

cometchatIncomingCall.setTrailingView(view)

What this does: Replaces the default trailing (right) area of the incoming call screen with your custom View.

Example:

trailing_view.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="@dimen/cometchat_45dp"
    android:layout_height="@dimen/cometchat_45dp"
    android:orientation="vertical">

    <com.cometchat.chatuikit.shared.views.avatar.CometChatAvatar
        android:id="@+id/avatar"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

</RelativeLayout>

What this does: Defines a custom trailing view layout with a CometChatAvatar inside a RelativeLayout sized at 45dp by 45dp.

Java
Kotlin

YourActivity.java

View trailingView = LayoutInflater.from(getContext()).inflate(R.layout.trailing_view, null);
CometChatAvatar avatar = trailingView.findViewById(R.id.avatar);
User callUser = (User) call.getCallInitiator();
if(callUser.getTags().contains("pro_user")){
            avatar.setAvatar(ResourcesCompat.getDrawable(getResources(), R.drawable.pro_user, null));
            }
avatar.setAvatar(callUser.getName(), callUser.getAvatar());
trailingView.setLayoutParams(new LinearLayout.LayoutParams(
            Utils.convertDpToPx(requireContext(), 45),
            Utils.convertDpToPx(requireContext(), 45)
        ));
cometchatIncomingCall.setTrailingView(trailingView);

YourActivity.kt

val trailingView: View = LayoutInflater.from(this).inflate(R.layout.trailing_view, null)
val avatar = trailingView.findViewById<CometChatAvatar>(R.id.avatar)
val callUser = call.getCallInitiator()
if (callUser.tags.contains("pro_user")) {
            avatar.setAvatar(ResourcesCompat.getDrawable(resources, R.drawable.pro_user, null)!!)
            }
avatar.setAvatar(callUser.name, callUser.avatar)
trailingView.layoutParams = LinearLayout.LayoutParams(
            Utils.convertDpToPx(this, 45),
            Utils.convertDpToPx(this, 45)
    )
cometchatIncomingCall.setTrailingView(trailingView)

What this does: Inflates the trailing_view.xml layout, retrieves the caller from the Call object, checks if the caller has a “pro_user” tag and sets a pro badge avatar if so, sets the caller’s avatar image and name, configures the layout size to 45dp, and applies the custom trailing view to the component.

Verify: After setting any advanced view, confirm the custom view renders in the correct position on the incoming call screen and displays the expected caller information.

Customization matrix

What you want to change	Where	Property/API	Example
Background color	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallBackgroundColor`	`<item name="cometchatIncomingCallBackgroundColor">#AA9EE8</item>`
Icon tint	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallIconTint`	`<item name="cometchatIncomingCallIconTint">?attr/cometchatPrimaryColor</item>`
Reject button background	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallRejectButtonBackgroundColor`	`<item name="cometchatIncomingCallRejectButtonBackgroundColor">?attr/cometchatColorWhite</item>`
Accept button background	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallAcceptButtonBackgroundColor`	`<item name="cometchatIncomingCallAcceptButtonBackgroundColor">?attr/cometchatPrimaryColor</item>`
Reject button text color	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallRejectButtonTextColor`	`<item name="cometchatIncomingCallRejectButtonTextColor">?attr/cometchatErrorColor</item>`
Accept button text color	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallAcceptButtonTextColor`	`<item name="cometchatIncomingCallAcceptButtonTextColor">?attr/cometchatColorWhite</item>`
Reject button text appearance	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallRejectButtonTextAppearance`	`<item name="cometchatIncomingCallRejectButtonTextAppearance">?attr/cometchatTextAppearanceButtonMedium</item>`
Accept button text appearance	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallAcceptButtonTextAppearance`	`<item name="cometchatIncomingCallAcceptButtonTextAppearance">?attr/cometchatTextAppearanceButtonMedium</item>`
Avatar style	`themes.xml`	`CometChatIncomingCallStyle` with `cometchatIncomingCallAvatarStyle`	`<item name="cometchatIncomingCallAvatarStyle">@style/CustomAvatarStyle</item>`
Apply a custom style	Activity/Fragment	`setStyle(int styleRes)`	`cometchatIncomingCall.setStyle(R.style.CustomIncomingCallStyle);`
Call object	Activity/Fragment	`setCall(Call)`	`.setCall(call)`
Custom call sound	Activity/Fragment	`setCustomSoundForCalls(@RawRes int)`	`.setCustomSoundForCalls(@RawRes int)`
Disable call sound	Activity/Fragment	`disableSoundForCalls(boolean)`	`.disableSoundForCalls(true)`
Accept button action	Activity/Fragment	`setOnAcceptClick(OnClick)`	See `setOnAcceptClick` code above
Reject button action	Activity/Fragment	`setOnRejectClick(OnClick)`	See `setOnRejectClick` code above
Error handler	Activity/Fragment	`setOnError(OnError)`	See `setOnError` code above
Entire call card view	Activity/Fragment	`setItemView(View)`	`cometchatIncomingCall.setItemView(view);`
Leading view (avatar area)	Activity/Fragment	`setLeadingView(View)`	See `setLeadingView` code above
Title view (caller name)	Activity/Fragment	`setTitleView(View)`	See `setTitleView` code above
Subtitle view	Activity/Fragment	`setSubtitleView(View)`	`cometchatIncomingCall.setSubtitleView(view);`
Trailing view	Activity/Fragment	`setTrailingView(View)`	See `setTrailingView` code above

Common pitfalls & fixes

Pitfall	Fix
Component does not render	Ensure `CometChatUIKit.init()` is called and awaited before using any UI Kit component. If `init()` has not completed, the component will not load data.
Incoming call screen is blank	Verify that you call `setUser(user)` with a valid `User` object that has `uid`, `name`, and `avatar` set. If any of these fields are empty, the screen may not display caller information.
Accept or reject button does nothing	Ensure you call `setCall(call)` with a valid `Call` object. If no `Call` object is set, the accept and reject buttons cannot trigger call actions.
Custom style not visible	Verify the style parent is `CometChatIncomingCallStyle` and that you call `setStyle(R.style.YourStyle)` on the component instance.
Sound still plays after disabling	Ensure you call `disableSoundForCalls(true)` before the component starts loading. If called after the incoming call is already ringing, it may not take effect.
Custom sound not playing	Verify the sound file exists in your `res/raw` directory and that you pass the correct `@RawRes int` resource ID to `setCustomSoundForCalls`.
`setOnAcceptClick` not firing	Verify you are calling `setOnAcceptClick` on the correct `CometChatIncomingCall` instance. If you have multiple instances, the callback may be set on the wrong one.
Custom leading view not showing	If you set a custom leading view but it does not appear, verify that the view is inflated correctly and has valid layout parameters. A view with zero width or height will not be visible.
Kotlin method names differ from Java	In Kotlin, `setOnAcceptClick` maps to `setOnAcceptCallClick` and `setOnRejectClick` maps to `setOnDeclineCallClick`. Use the Kotlin-specific method names in Kotlin code.

FAQ

Q: How do I display the incoming call screen when a call is received? A: Add CometChatIncomingCall to your layout via XML or programmatically in an Activity/Fragment. Set the User object with setUser(user) and the Call object with setCall(call) to display the caller’s information and enable accept/reject actions. Q: Can I use CometChatIncomingCall in both an Activity and a Fragment? A: Yes. In an Activity, create the instance with new CometChatIncomingCall(this) and call setContentView. In a Fragment, create it with new CometChatIncomingCall(requireContext()) and return it from onCreateView. Q: How do I customize the accept and reject button colors? A: Define a custom style with parent CometChatIncomingCallStyle in themes.xml. Set cometchatIncomingCallAcceptButtonBackgroundColor and cometchatIncomingCallRejectButtonBackgroundColor to your desired colors, then apply the style with setStyle(). Q: Why are the Kotlin method names different from Java for accept and reject actions? A: In Kotlin, the accept action uses setOnAcceptCallClick and the reject action uses setOnDeclineCallClick. These are the Kotlin-specific method names exposed by the component. Q: Does CometChatIncomingCall emit any global events? A: No. The CometChatIncomingCall component does not have any exposed events. Use the action callbacks (setOnAcceptClick, setOnRejectClick, setOnError) to handle user interactions.

​When to use this

​Prerequisites

​Quick start

​Core concepts

​Implementation

​Activity integration

​Fragment integration

​Actions

​setOnAcceptClick

​setOnRejectClick

​setOnError

​Filters

​Events

​Style

​Functionality

​Advanced views

​setItemView

​setLeadingView

​setTitleView

​setSubtitleView

​setTrailingView

​Customization matrix

​Common pitfalls & fixes

​FAQ

​Next steps

When to use this

Prerequisites

Quick start

Core concepts

Implementation

Activity integration

Fragment integration

Actions

`setOnAcceptClick`

`setOnRejectClick`

`setOnError`

Filters

Events

Style

Functionality

Advanced views

`setItemView`

`setLeadingView`

`setTitleView`

`setSubtitleView`

`setTrailingView`

Customization matrix

Common pitfalls & fixes

FAQ

Next steps
